120 MM
GROOVED SET MORTAR

With the help of the tow-head attached to the muzzle of the barrel, it may be towed by tactical wheeled and armored vehicles and be transferred to the desired area. With its ergonomic structure and advanced barrel directing system, it helps for mechanically fast and accurate shots to be made.
• Barrell Weight 127kg
• Barrell Lenght 1900 mm
• Barrell Outer Diameter 164 mm
• Barrell Inner Diameter 119,90 mm
• Operating Pressure 1250 kg/cm²
• Effective Range 8000 metre / meters
• Total weight 640 k
• Full Lenght 2800 mm
• Height From -3 to +90
• Width 1850 mm

120 MM
AUTOMATIC MORTAR SYSTEM

The Military Grid Reference System (MGRS) and Geographic Coordinates are supported for locating multiple targets and forward observers on map Accurate ballistical calculation with using polynomial fitting methods firing chart, ammunition muzzle velocity and meteorological data Forward observer’s adjustments are supported
• Barrell 120 mm rifled
• Range min 1500 m Max 8000 m
• Barrel Length 1900 mm Recoil Force < 25
• Time to Shoot < 1 minute Time to Scoot < 10 second
• Firing Sector Azimuth± 3200 milyem elevation:800–1200 milyem
• Dimensions Width 1450 mm Length 2450 mm Height 1100 mm
• Firing modes Automatic and Manual
• May vary according to the type of ammunition and rifled/smooth barrel

With the help of the tow-head attached to the muzzle of the barrel, it may be towed by tactical wheeled and armored vehicles and be transferred to the desired area. With its ergonomic structure and advanced barrel directing system, it helps for mechanically fast and accurate shots to be made.

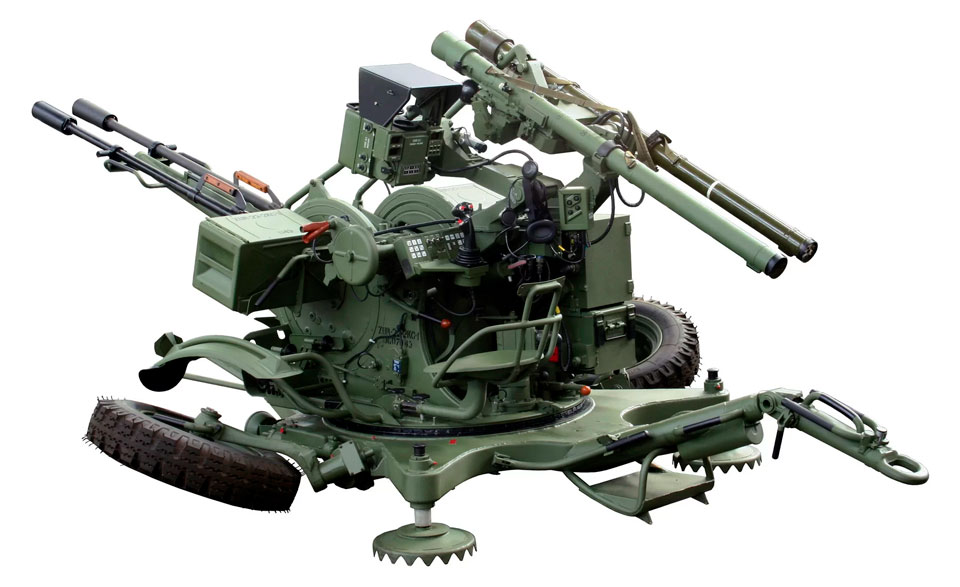

• Caliber 23 mm
• Maximum vertical shooting range 1500 m
• Maximum slant shooting range 2500 m
• Maximum horizantal shooting range 2000 m
• Rate of fire (from to two submachine guns) 1600-2000 rounds/min
• Combat rate of fire (from to two submachine guns) 1600-2000 rounds/min
• The affected area in the horizantal plane 360 deg
• The affected area in the vertical plane From -10 to +90 deg
• The affected area in the vertical plane,above the wheels From -3 to +90 deg

AK-47 (12.7 x 99) MACHINE GUN

• Caliber 12.7x99
• Max Lenght 1500 m
• Rate of fire 450-500 Shots min
• Muzzle Velocity 450-500 m/s
• Barrel Length 1140 mm
• Total Weight 25 kg
• Barrel Service Life 20.000 Rounds
• Weapon Service Life 40.000 Rounds

MACHINE GUN
7.62 X 54

• Caliber 7.62
• Cartidge 7.62x54 mm
• Fire mode Automatic
• Rate of fire, 600-800rounds/ min
• Pratical rate of fire, rounds/min 250 max
• Ammunition box capacity, number of rounds 100/200
• Muzzle velocity 825 m/s
• Sighting range 1500 m
• Maximum effective firing range 1000 m
• Barrel length 605 mm
• Sight radius 663 mm
• Overall length 1192 mm
• Weight without ammunition box 8.5 kg
• Weight of loaded ammunition box kg -
• -Box with belt of 100 3.9
• -Box with belt of 200 6.5
• System life, rounds 25000
• Principle of function Gas operated
