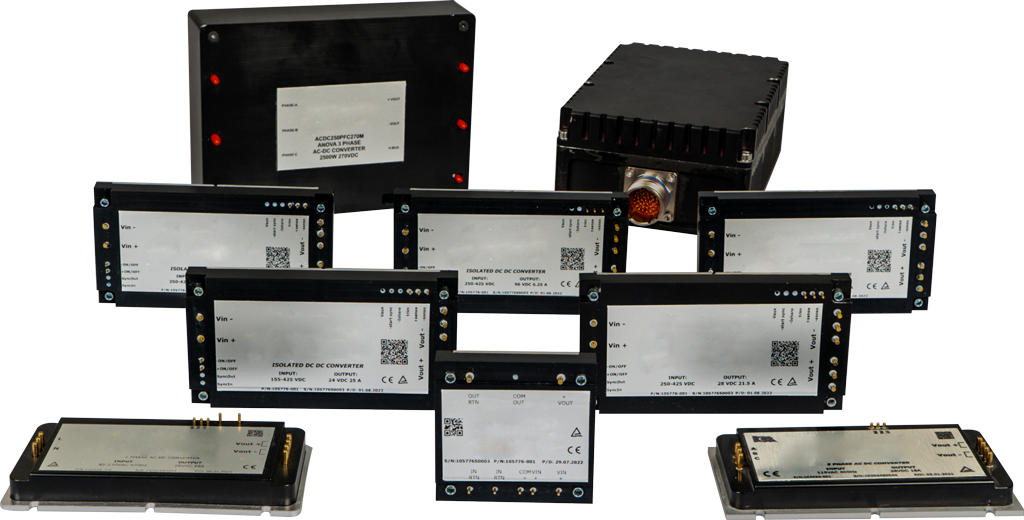

AC-DC / DC-DC
CONVERTER FAMILY
Power management carries great importance for in all systems. Power electronics basically examines energy control and transformation of energy forms into each other. Power electronics is made up of two parts; first is the energy management and the second is transformation of energy.
In aviation sector, hardest stage of power electronics is the cooling of heated integrations of power electronics elements. Heat emerges due to loss during the energy transformation. It is important to maintain fault-free function under hard conditions by carrying out temperature analysis and simulation tests in order to prevent this heat to damage other systems and keep working temperature range of modules within required parameters.
| Converter Type |
Manufacturer Code | Phase Number |
Input Voltage |
Input Frequency |
Output Power |
Total Harmonic Distortion |
Power Factor (PF) |
Efficiency | Output Voltage |
Input-Output Isolation |
Package Size |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC/DC | ACDCTPFC050LLC024IM | 3 | 115 VAC | 400 Hz | 500 W | <25 | >94 | >90 | 24 VDC | 3000 VDC | Full Brick | |
| AC/DC | ACDCTPFC050LLC028IM | 3 | 115 VAC | 400 Hz | 500 W | <25 | >94 | >90 | 28 VDC | 3000 VDC | Full Brick | |
| AC/DC | ACDCTPFC050LLC048IM | 3 | 115 VAC | 400 Hz | 500 W | <25 | >94 | >90 | 48 VDC | 3000 VDC | Full Brick | |
| AC/DC | ACDCTPFC050LLC096IM | 3 | 115 VAC | 400 Hz | 500 W | <25 | >94 | >90 | 96 VDC | 3000 VDC | Full Brick | |
| AC/DC | ACDCSPFC050LLC024IM | 1 | 115 VAC | 400 Hz | 500 W | <5 | >99 | >90 | 24 VDC | 3000 VDC | Full Brick | |
| AC/DC | ACDCSPFC050LLC028IM | 1 | 115 VAC | 400 Hz | 500 W | <5 | >99 | >90 | 28 VDC | 3000 VDC | Full Brick | |
| AC/DC | ACDCSPFC050LLC048IM | 1 | 115 VAC | 400 Hz | 500 W | <5 | >99 | >90 | 48 VDC | 3000 VDC | Full Brick | |
| AC/DC | ACDCSPFC050LLC096IM | 1 | 115 VAC | 400 Hz | 500 W | <5 | >99 | >90 | 96 VDC | 3000 VDC | Full Brick | |
| AC/DC | ACDCTPFC050LLC380NM | 3 | 115 VAC | 400 Hz | 500 W | <25 | >94 | >90 | 380 VDC | - | Half Brick | |
| AC/DC | ACDCSPFC050LLC270NM | 1 | 115 VAC | 400 Hz | 500 W | <5 | >99 | >90 | 270 VDC | - | Half Brick | |
| AC/DC with EMI Filter | ACDCT050PFC024IME | 3 | 115 VAC | 400 Hz | 500 W | <25 | >94 | >90 | 24 VDC | 3000 VDC | 180 x 116 x 67 mm | |
| AC/DC with EMI Filter | ACDCT050PFC028IME | 3 | 115 VAC | 400 Hz | 500 W | <25 | >94 | >90 | 28 VDC | 3000 VDC | 180 x 116 x 67 mm | |
| AC/DC with EMI Filter | ACDCS050PFC024IME | 1 | 115 VAC | 400 Hz | 500 W | <25 | >94 | >90 | 24 VDC | 3000 VDC | 180 x 116 x 67 mm | |
| AC/DC with EMI Filter | ACDCS050PFC028IME | 1 | 115 VAC | 400 Hz | 500 W | <25 | >94 | >90 | 28 VDC | 3000 VDC | 180 x 116 x 67 mm | |
| AC/DC with EMI Filter | ACDCT020PFC082IME | 3 | 115 VAC | 400 Hz | 200 W | <25 | >94 | >90 | 82.5 VDC | 1500 VDC | 196.7 x 127 x 50.8 mm | |
| AC/DC with EMI Filter | ACDCT035PFC028IME | 3 | 115 VAC | 400 Hz | 350 W | <25 | >94 | >90 | 28 VDC | 1500 VDC | 196.7 x 127 x 50.8 mm | |
| AC/DC | ACDCT250PFC270NM | 3 | 115 VAC | 400 Hz | 2500 W | <5 | >99 | >91 | 270 VDC | - | 170 x 130 x 40 mm | |
| AC EMI Filter | ACDCS050FLT115M | 1 | 115 VAC | 400 Hz | 500 W | - | - | - | 115 VAC | - | Half Brick | |
| AC EMI Filter | ACDCT050FLT115M | 3 | 115 VAC | 400 Hz | 500 W | - | - | 115 VAC | - | Custom Design | ||
| AC EMI Filter | ACDCT250FLT115M | 3 | 115 VAC | 400 Hz | 2500 W | - | - | - | 115 VAC | - | Custom Design | |
| DC/DC | DCDC060LLC012IM | - | 250 VDC- 425 VDC | - | 300 W | - | - | >90 | 12 VDC | 3000 VDC | Full Brick | |
| DC/DC | DCDC060LLC024IM | - | 250 VDC- 425 VDC | - | 600 W | - | - | >90 | 24 VDC | 3000 VDC | Full Brick | |
| DC/DC | DCDC060LLC028IM | - | 250 VDC- 425 VDC | - | 600 W | - | - | >90 | 28 VDC | 3000 VDC | Full Brick | |
| DC/DC | DCDC060LLC048IM | - | 250 VDC- 425 VDC | - | 600 W | - | - | >90 | 48 VDC | 3000 VDC | Full Brick | |
| DC/DC | DCDC060LLC096IM | - | 250 VDC- 425 VDC | - | 600 W | - | - | >90 | 96 VDC | 3000 VDC | Full Brick | |
| DC/DC | DCDC010LLC024IM | - | 10 VDC- 32 VDC | - | 100 W | - | - | >85 | 24 VDC | 3000 VDC | Full Brick | |
| DC/DC | DCDC010LLC028IM | - | 10 VDC- 32 VDC | - | 100 W | - | - | >85 | 28 VDC | 3000 VDC | Full Brick | |
| DC/DC | DCDC005FLYZVS3V3IME | - | 16 VDC- 50 VDC | - | 33 W | - | - | >78 | 3.3 VDC | 2250 VDC | 22 x 16.5 x 7.6 mm | |
| DC/DC | DCDC005FLYZVS005IME | - | 16 VDC- 50 VDC | - | 50 W | - | - | >82 | 5 VDC | 2250 VDC | 22 x 16.5 x 7.6 mm | |
| DC/DC | DCDC005FLYZVS015IME | - | 16 VDC- 50 VDC | - | 50 W | - | - | >85 | 15 VDC | 2250 VDC | 22 x 16.5 x 7.6 mm | |
| DC/DC | DCDC030LLC024IME | - | 16 VDC- 36 VDC | - | 300 W | - | - | >90 | 24 VDC | 2000 VDC | 38.72 x 22.8 x 7.21 mm | |
| DC/DC | DCDC030LLC028IME | - | 16 VDC- 36 VDC | - | 300 W | - | - | >90 | 28 VDC | 2000 VDC | 38.72 x 22.8 x 7.21 mm | |
| DC EMI Filter | ACDCT120FLT270M | - | 270 VDC | - | 1200 W | - | - | - | 270 VDC | - | Half Brick | |
| AC/DC | ACDCT100PFC380NM | 3 | 115 VAC | 400 Hz | 1000 W | <10 | >95 | >90 | 380 VDC | - | Full Brick | |
| AC/DC | ACDCT050PFC380NM | 3 | 115 VAC | 400 Hz | 500 W | <10 | >95 | >90 | 380 VDC | - | Full Brick | |
| AC/DC | ACDCT250PFC380NME | 3 | 115 VAC | 400 Hz | 2500 W | <5 | >99 | >91 | 380 VDC | - | Custom Design | |
| AC/DC | ACDCT250PFC270IME | 3 | 115 VAC | 400 Hz | 2500 W | <5 | >99 | >91 | 270 VDC | 3000 VDC | Custom Design | |
| AC/DC | ACDCT100PFC028IM | 3 | 115 VAC | 400 Hz | 1000 W | <15 | >95 | >90 | 28 VDC | 3000 VDC | Full Brick | |
| AC/DC | ACDCT100PFC048IM | 3 | 115 VAC | 400 Hz | 1000 W | <15 | >95 | >90 | 48 VDC | 3000 VDC | Full Brick | |
| DC/DC | DCDC060LLC0270IM | - | 250 VDC- 425 VDC | - | 600 W | - | - | >90 | 270 VDC | 3000 VDC | Full Brick | |
| DC/DC | DCDC030ZVS005IM | - | 16 VDC- 40 VDC | - | 300 W | - | - | >90 | 5 VDC | 2000 VDC | Half Brick | |
| DC/DC | DCDC030ZVS012IM | - | 16 VDC- 40 VDC | - | 300 W | - | - | >90 | 12 VDC | 2000 VDC | Half Brick | |
| DC/DC | DCDC030ZVS015IM | - | 16 VDC- 40 VDC | - | 300 W | - | - | >90 | 15 VDC | 2000 VDC | Half Brick | |
| DC/DC | DCDC030ZVS024IM | - | 16 VDC- 36 VDC | - | 300 W | - | - | >90 | 24 VDC | 2000 VDC | Quarter Brick | |
| DC/DC | DCDC030ZVS028IM | - | 16 VDC- 36 VDC | - | 300 W | - | - | >90 | 28 VDC | 2000 VDC | Quarter Brick | |
| DC EMI Filter | ACDCT020FLT050M | - | 16-50 VDC | - | 200 W | - | - | - | 270 VDC | - | Half Brick | |
