MEDIUM VOLTAGE
Birlesik ltd.

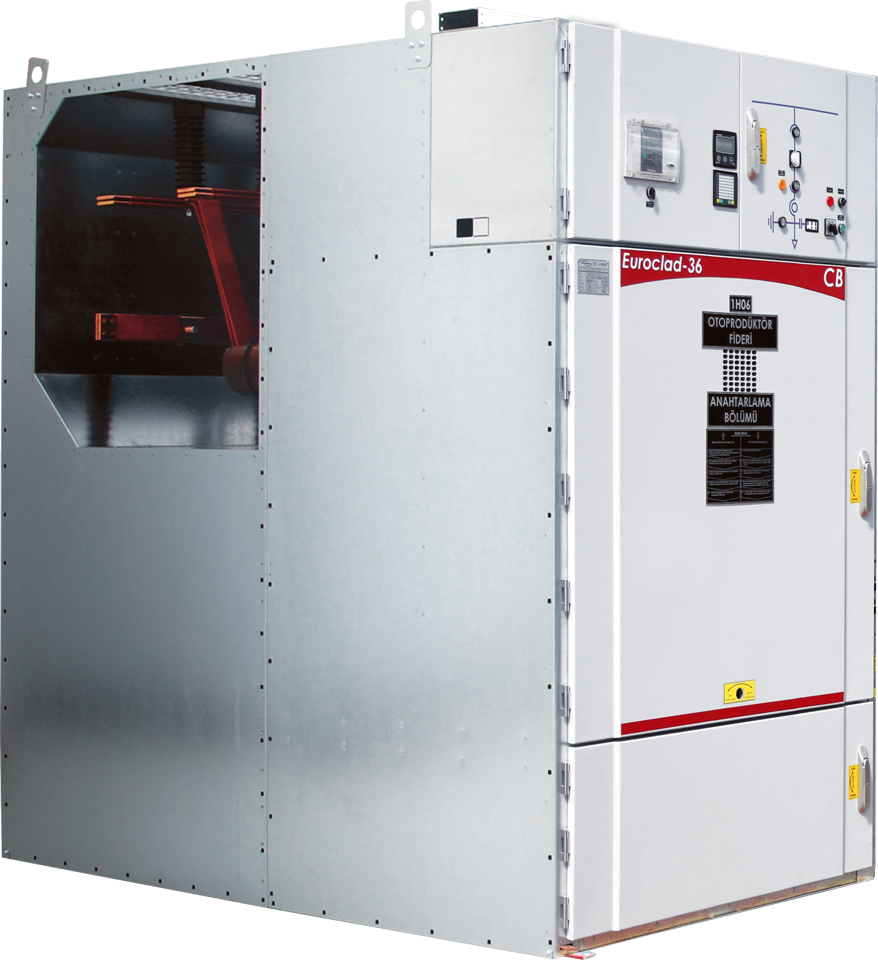

EuroCLAD
EuroClad switchgear panels provide the safest, most efficient and reliable substation solutions for all kinds of medium voltage installations in distribution, transmission and generation Networks, like industrial zones, electrical utilities, infrastructures and residential networks. It is the leading product in Our organisation medium voltage switching product range.
EuroClad switchgear panels have many advantages over similar products available, and these features has made Euroclad one of the top products on the international medium voltage switchgear market. Its three models with different dimensions and voltage levels provide effective solutions for all global requirements.
EuroClad switchgear panels are manufactured in compliance with IEC 62271-200, and typetested in international laboratories.
EuroClad can be used with both SF6 or vacuum circuit breakers. Its unique design allows the customer to use special configurations with components like surge arresters, CTs, PTs, capacitors, contactors and many others. With the compartmented structure of metal clad switchgear, in an event of failure the fault is confined within a certain compartment, which leads to minimum possible maintenance durations and shortest power outages.
EuroClad switchgear panels are manufactured using the components selected from the brands of the customers choice, and a tailormade solution is offered to the customer according to the requirements of the project and the specifications.
EuroClad switchgear panels can also be used next to the existing switchgear from other manufacturers with the busbar adaptation kit specially designed and produced in Our organisation.

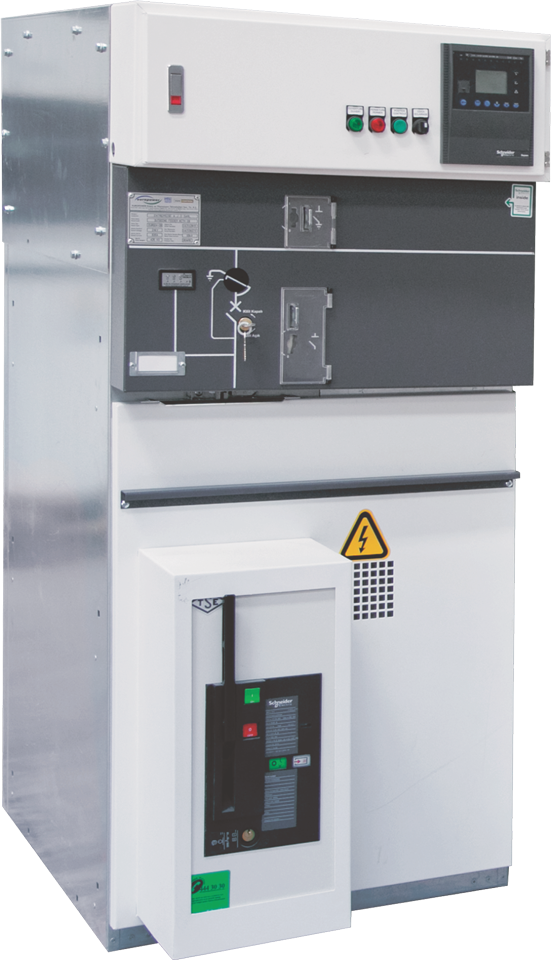

Euro24/36
Euro36 and Euro24 are the metal-enclosed air-insulated modular switchboard panels. Designed for high operational reliability and personal safety, they protect your installations and ensure the continuity of your electrical supply.
This range of switchgear offers standardized modular units with load break switches, disconnectors, fuses, circuit breakers and contactors as switching apparatus in simple, easy-to-use, reliable, rugged and cost-effective packages.
Intelligent and simple design of these cubicles result in high production rates, short delivery times, and also easy maintenance and shorter downtimes.
Euro36 and Euro24 cubicles are specially designed and manufactured to provide a high level of protection in any event of internal arcing. All operations are carried out from the front side of the panel while the door is closed, and this provides safe working conditions for the operator. Also, the simple interlock mechanisms in the panels that are designed thinking the overall operational sequences create a fool-proof product for your distribution network.
In addition to the standard models, there are also versions of Euro36/24 that have withdrawable circuit breakers available, to offer a solution which fits in between EuroClad and Euro36/24, for optimized price, dimensions and performance.
Euro36 and Euro24 switchgear panels are manufactured in compliance with IEC 62271- 200 and type-tested in international laboratories.
Birlesik ltd.

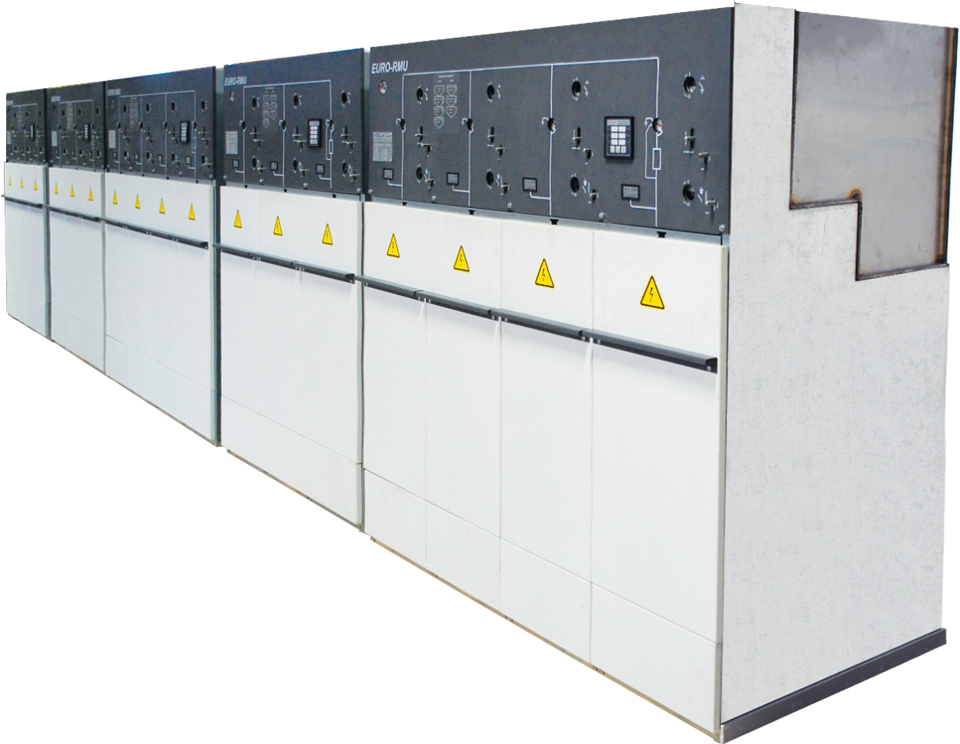

EuroRMU
EuroRMU is the SF6 gas insulated ring main unit product range of Our organisation up to 24kV voltage level. These units with very compact dimensions combine all medium voltage functional system units like disconnector switches, load break switches and circuit breakers to enable supply, connection and protection of line feeders and transformers on a network.
EuroRMU range of switchgear panels have very compact dimensions compared to the airinsulated cubicles due to SF6 gas insulation. This leads to easy installation and usage especially in confined spaces like wind power plants, underground applications or facilities with limited space. They also have lower lifetime costs, because of its maintenance-free nature.
EuroRMU products ensure high operational safety for the operators with interlocks and visible indication of earthing, position, and maneuvers.
EuroRMU has three different models for different requirements, which are 'compact', 'extensible' and 'modular';
Compact models are standardized packages, built by taking the most common configurations used in worldwide applications into consideration.
Extensible models offer more flexibility to the customer, giving the opportunity to add new panels to the package as their facility requires in time.
Modular type models let the customers freely configure the switchgear package according to their needs.
EuroRMU ring main units are manufactured in compliance with IEC 62271 and type-tested in international laboratories.
